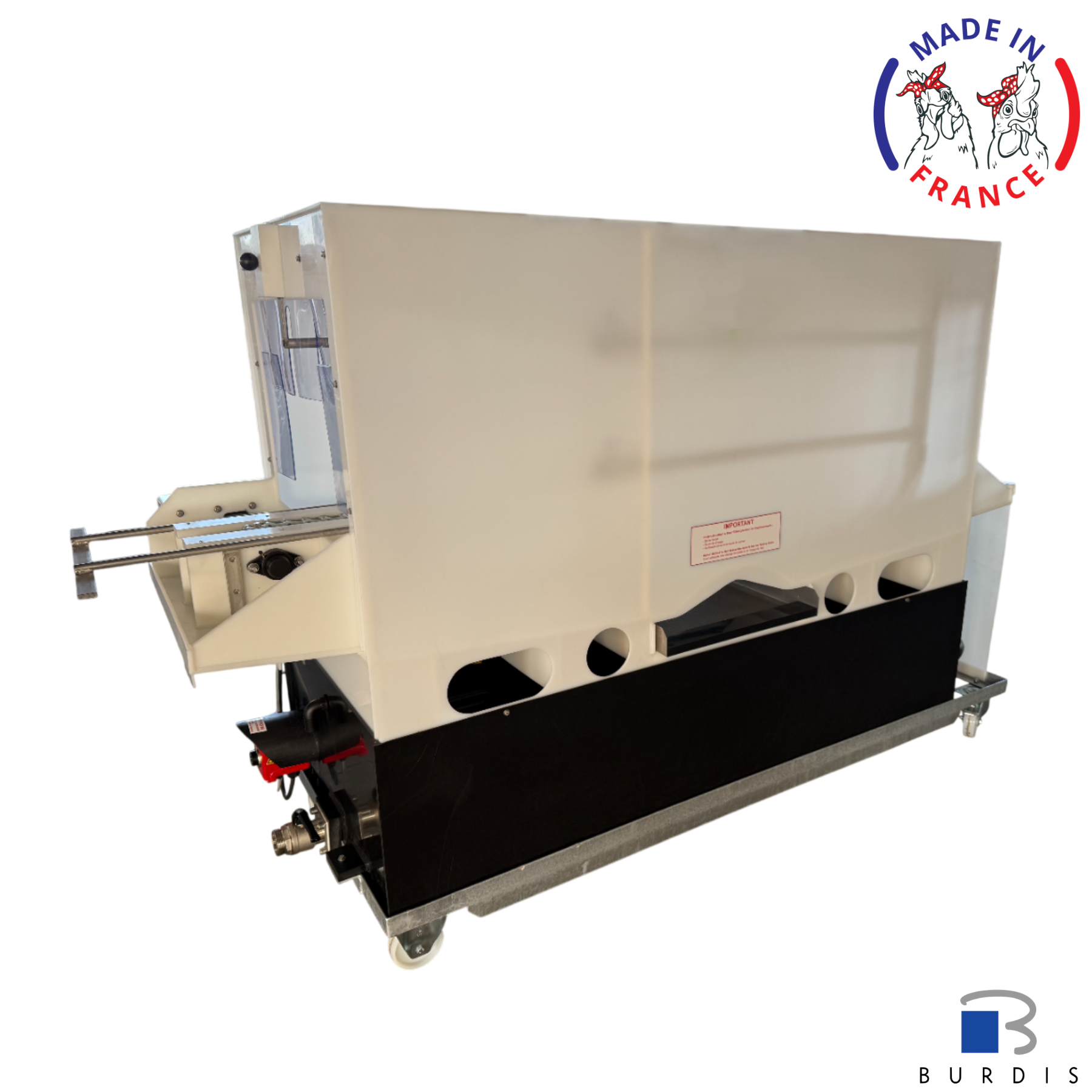

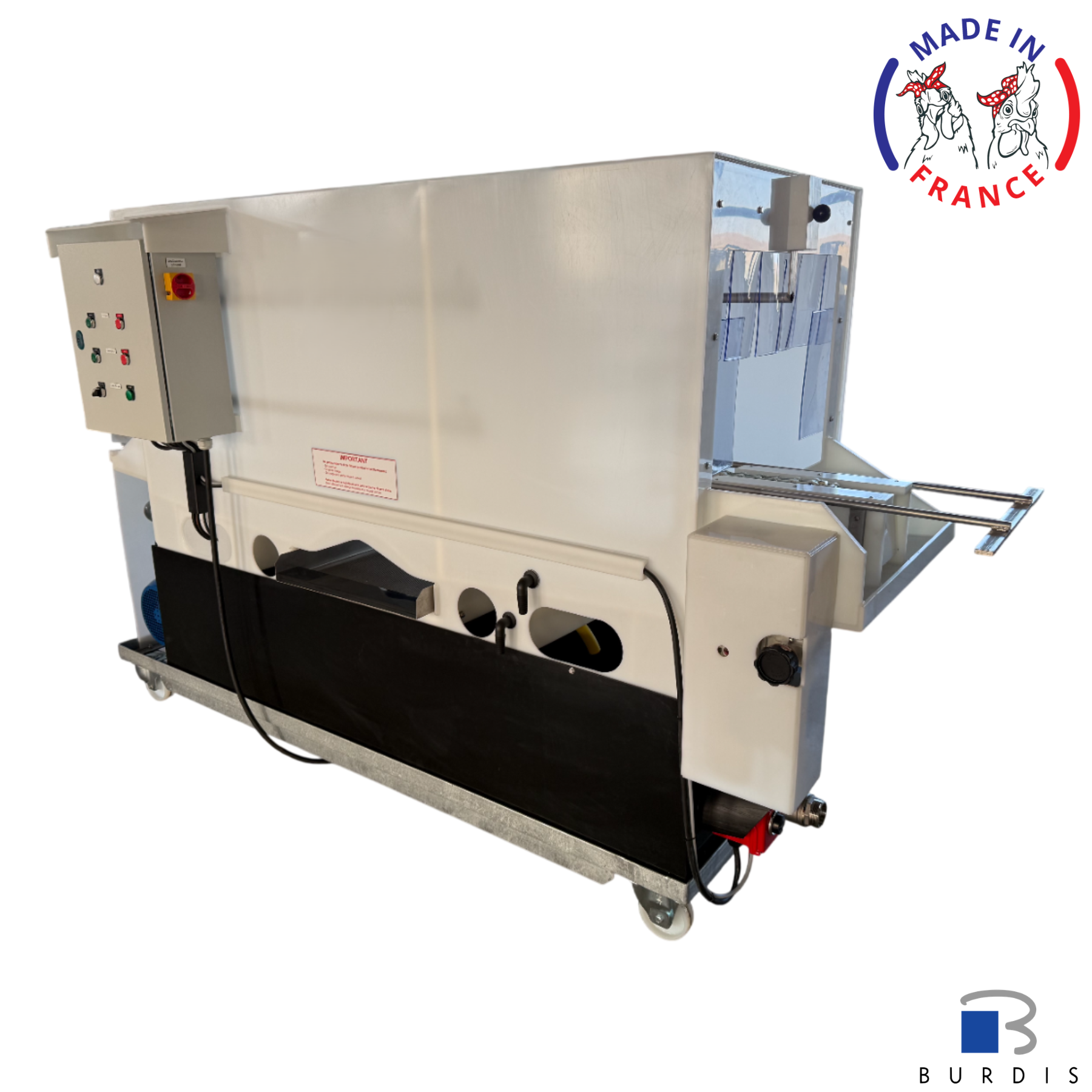

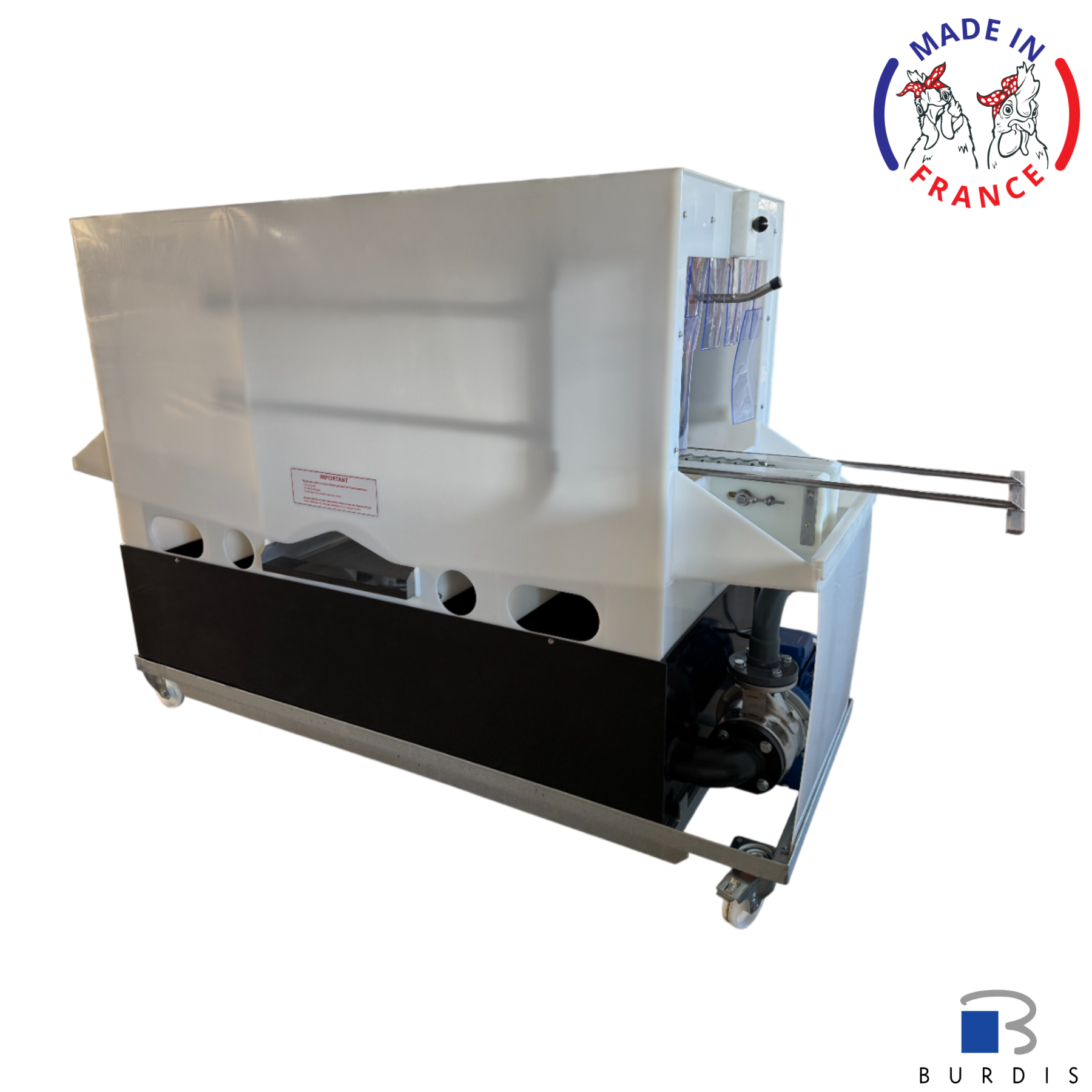

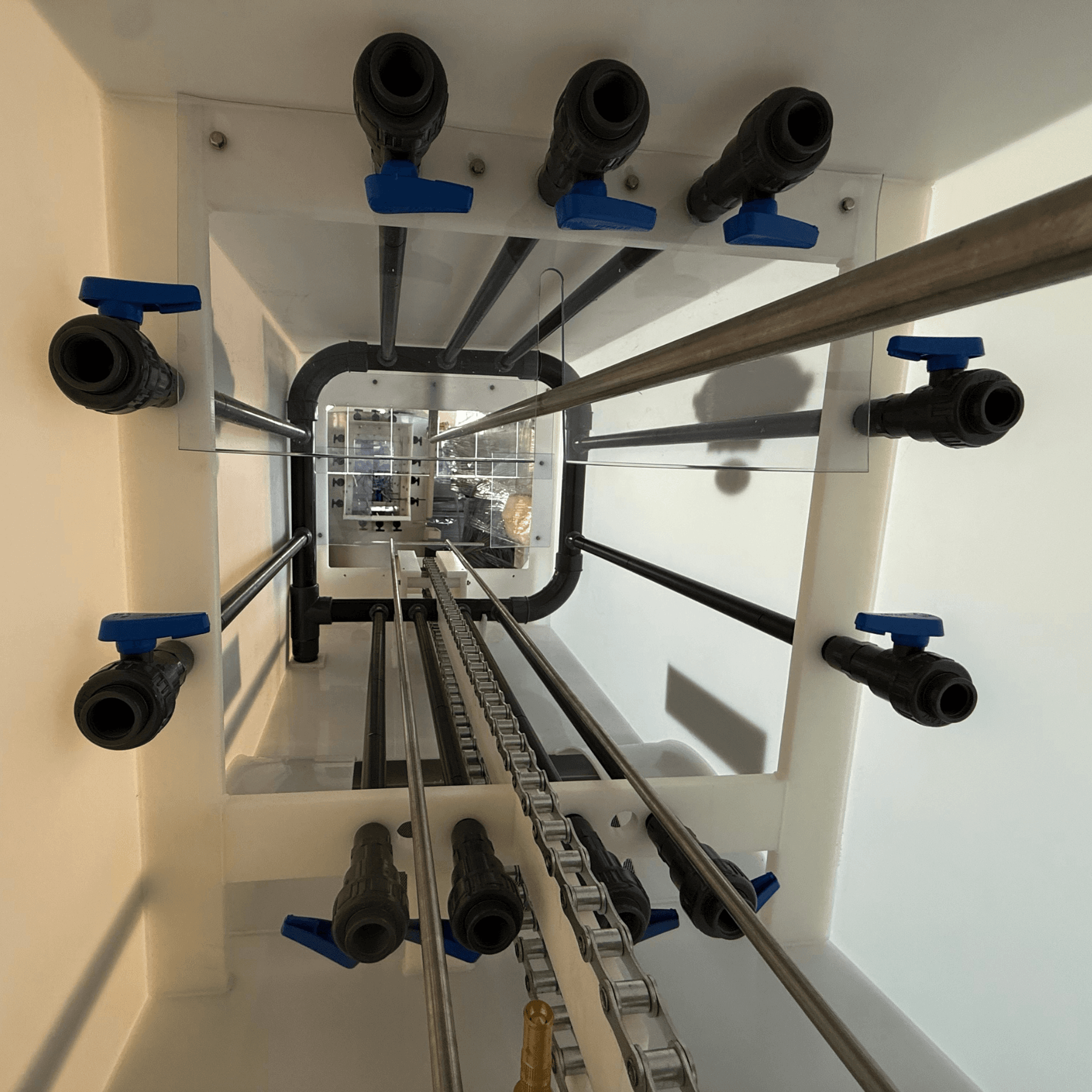

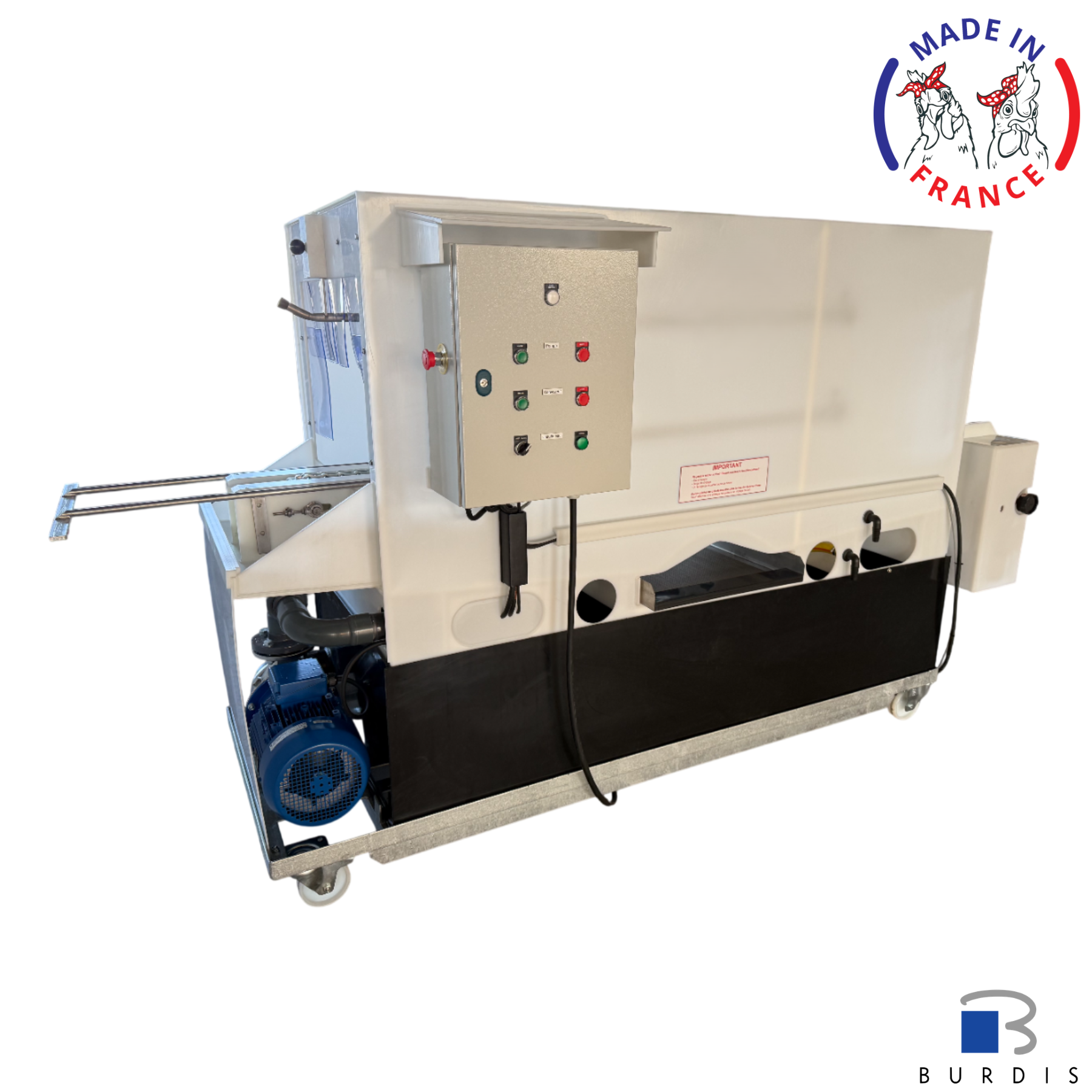

This washing machine for poultry transport crates is equipped with a tunnel consisting of 11 high-pressure PVC wash ramps over a total length of 1.10 m. The ramps feature wide slits to prevent clogging and ensure continuous, uniform cleaning.

The conveyor system, driven by a variable-speed motor and a steel chain with cleats, ensures smooth and controlled movement, capable of washing every type of crates (adjustable speed set by a mechanical variator).

Rinsing with clean water at the end of the cycle removes all traces of dirty water from inside the crates, ensuring optimal hygiene and compliance with the sanitary requirements of the poultry industry.

Designed for heavy-duty use in industrial settings, the washer is constructed from durable, high-performance materials:

• High-strength polyethylene frame
• Galvanized steel support frame on casters
• 2 fixed wheels and 2 swivel wheels with brakes
• Guidance rails made of stainless steel angle bars
• Stainless steel turbine pump with energy-efficient IE3 motor

Its 650-liter water tank with overflow and closed-loop recycling system provide extended washing autonomy while reducing water consumption. For optimal results, a heating element is built in. Washing with hot water significantly improves the degreasing and disinfection of fattened poultry crates.

A filter drawer collects waste, and a drain valve makes it easy to maintain and clean the machine.

This model is ideal for slaughterhouses, poultry farms, crate washing facilities, food logistics companies, packaging centers, and more. A stainless steel crate washer is also available.

Important notes:

This installation requires a 32A three-pole circuit breaker (Class D) with a Euro 32A three-phase + ground outlet. The electrical connections are provided as a guide for a power supply located near the machine (approximately 5 meters). However, your electrician must recalculate the cable gauge and the rating of the circuit breakers based on the length of the power supply run to your low-voltage distribution panel.
